A Model Context Protocol (MCP) plugin that allows Claude Desktop to interact directly with Figma, enabling powerful AI-assisted design capabilities.

Important: This project is based on cursor-talk-to-figma-mcp by Sonny Lazuardi. It has been adapted to work with Claude Desktop instead of Cursor. The original implementation and main credit belongs to Sonny Lazuardi ❤️

• Native Claude Integration: Allows Claude to communicate with Figma through the Model Context Protocol (MCP)
• Powerful Commands: Manipulate objects in Figma, get information, create and modify elements
• Advanced Text & Font Control: Comprehensive text styling capabilities including font selection, spacing, and text effects
• Bidirectional Communication: Real-time WebSocket channel between Claude and Figma
• Fluid Experience: Design with AI as your assistant, accelerating creative workflows
• Text Scanning: Identify and manipulate text nodes within Figma documents
• Remote Components: Access and utilize components from team libraries
• Modular Architecture: Clean separation of concerns with specialized tool modules
• Enhanced Error Handling: Robust timeout and error recovery mechanisms
• Performance Optimizations: Improved handling of complex operations with chunking and batching

• Claude Desktop installed
• Figma Desktop installed
• Figma account
• Bun v1.0.0 or higher
  • Linux macOS curl -fsSL https://bun.sh/install | bash
  • Windows powershell -c "irm bun.sh/install.ps1 | iex"

1. Clone this repository:

   git clone https://github.com/arinspunk/claude-talk-to-figma-mcp.git
   cd claude-talk-to-figma-mcp

2. Install dependencies:

   bun install

3. Build the project:

   bun run build

4. Configure the MCP in Claude Desktop:

   bun run configure-claude

   Restart Claude Desktop if it was open.

   Note: This script does the following:

   • Locates the Claude Desktop configuration file:
     • On macOS: ~/Library/Application Support/Claude/claude_desktop_config.json
     • On Windows: %APPDATA%\Claude\claude_desktop_config.json
   • Creates a backup of the existing configuration file
   • Modifies or creates the configuration file to include "ClaudeTalkToFigma" in the list of MCPs
   • Configures the command that Claude Desktop should execute to start the MCP

5. Install the Figma plugin:

   Note: This project uses a custom Figma plugin located in the src/claude_mcp_plugin folder.

   • Open Figma
   • Go to Menu > Plugins > Development > New Plugin
   • Select "Import plugin from manifest"
   • Navigate and select the src/claude_mcp_plugin/src/claude_mcp_plugin/manifest.json file from this repository

   The plugin will appear in your development plugins list and you can use it like any other plugin.

Once installed, you just need to start it:

1. Start the WebSocket server:

   bun socket

   Verify it's running with http://localhost:3055/status

   Note: if for any reason you need to stop the server, press Ctrl+C in the terminal.

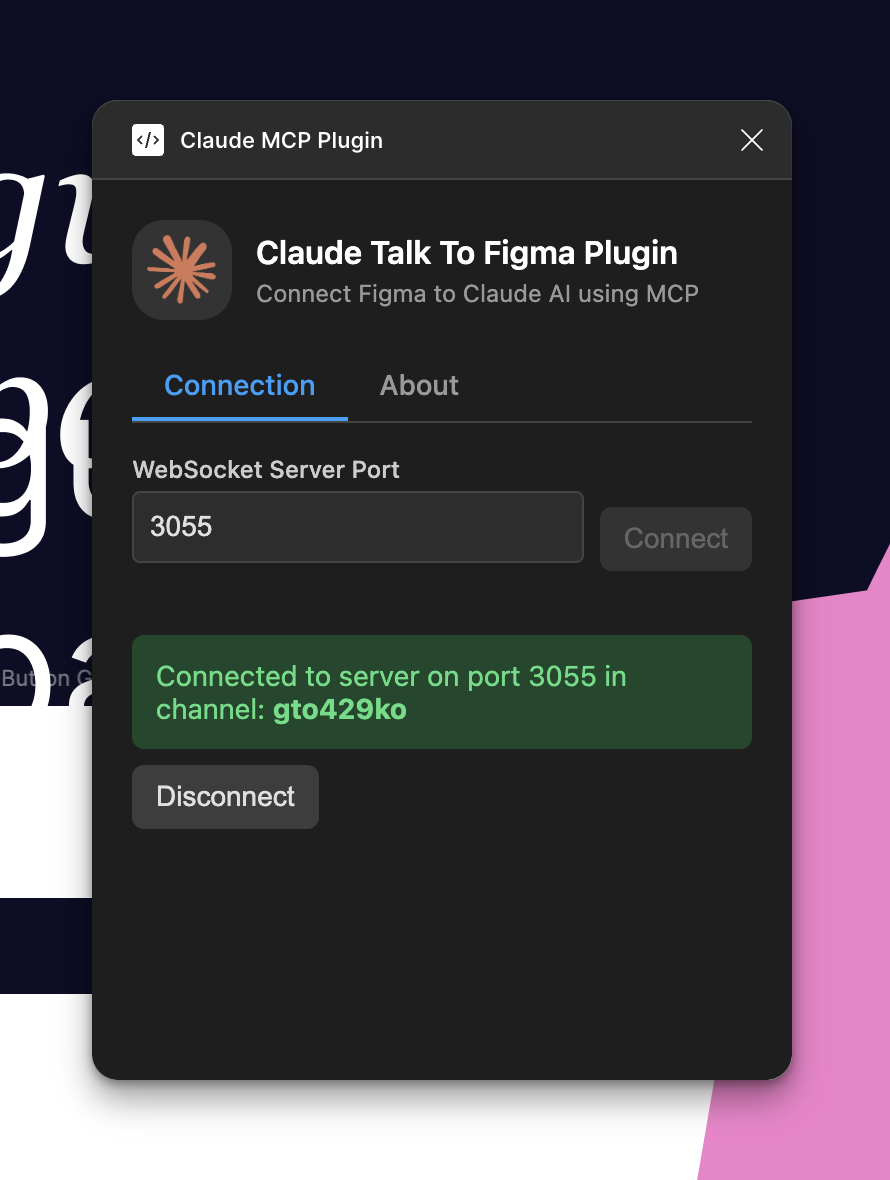

2. Connect the plugin to the server:

   Open the Claude MCP Plugin in Figma and copy the channel ID generated to provide it to Claude.



3. Claude Desktop:

   Open Claude Desktop and confirm that "ClaudeTalkToFigma" appears in the MCPs selector.

4. Ready to use!

   Now you can send commands to Figma from Claude.

1. Before you start designing with Claude, make it an expert in UX/UI 🎨

   Note: Also in Galician, Português and Español.

2. Now tell Claude to connect to your Figma project:

   Talk to Figma, channel {channel-ID}


+----------------+     +-------+     +---------------+     +---------------+
|                |     |       |     |               |     |               |
| Claude Desktop |<--->|  MCP  |<--->| WebSocket Srv |<--->| Figma Plugin  |
|   (AI Agent)   |     |       |     |  (Port 3055)  |     |  (UI Plugin)  |
|                |     |       |     |               |     |               |
+----------------+     +-------+     +---------------+     +---------------+

The codebase follows a clean, modular architecture:

src/
  talk_to_figma_mcp/     # MCP Server implementation
    server.ts            # Main entry point
    config/              # Server configuration
    tools/               # Modular tool categories
      index.ts           # Tool registration
      document-tools.ts  # Document interaction tools
      creation-tools.ts  # Shape and element creation tools
      modification-tools.ts # Property modification tools
      text-tools.ts      # Text manipulation tools
      component-tools.ts # Component handling tools
    utils/               # Shared utilities
      websocket.ts       # WebSocket communication
      logger.ts          # Logging system
      figma-helpers.ts   # Figma-specific helpers
    types/               # TypeScript type definitions
  claude_mcp_plugin/     # Figma plugin
    code.js              # Plugin implementation
    manifest.json        # Plugin configuration
    ui.html              # Plugin UI

This modular design provides several benefits:

• Maintainability: Each tool category is isolated in its own file
• Scalability: New tools can be added without modifying existing code
• Code Navigation: Easier to find and understand specific functionality
• Testing: Simplified unit testing of individual components

As Claude is connected to our MCP, it already knows the list of tools to manipulate Figma. But if you want, you can mention them in your prompts:

• get_document_info: Get detailed information about the current Figma document
• get_selection: Get information about the current selection in Figma
• get_node_info: Get detailed information about a specific node in Figma
• get_nodes_info: Get detailed information about multiple nodes in Figma
• get_styles: Get all styles from the current Figma document
• get_local_components: Get all local components from the Figma document
• get_remote_components: Get available components from team libraries in Figma
• scan_text_nodes: Scan all text nodes in the selected Figma node
• join_channel: Join a specific channel to communicate with Figma
• export_node_as_image: Export a node as an image from Figma

• create_rectangle: Create a new rectangle in Figma
• create_frame: Create a new frame in Figma
• create_text: Create a new text element in Figma
• create_ellipse: Create a new ellipse or circle in Figma
• create_polygon: Create a new polygon with customizable sides in Figma
• create_star: Create a new star with customizable points in Figma
• create_vector: Create a new vector shape in Figma
• create_line: Create a new line in Figma
• group_nodes: Group multiple nodes together in Figma
• ungroup_nodes: Ungroup nodes in Figma
• clone_node: Clone an existing node in Figma
• insert_child: Insert a child node inside a parent node in Figma
• flatten_node: Flatten a node in Figma (e.g., for boolean operations)

• set_fill_color: Set the fill color of a node in Figma
• set_stroke_color: Set the stroke color of a node in Figma
• move_node: Move a node to a new position in Figma
• resize_node: Resize a node in Figma
• delete_node: Delete a node from Figma
• set_corner_radius: Set the corner radius of a node in Figma
• set_auto_layout: Configure auto layout properties for a node in Figma
• set_effects: Set visual effects (shadows, blurs) for a node in Figma
• set_effect_style_id: Apply an effect style to a node in Figma

• set_text_content: Set the text content of an existing text node in Figma
• set_multiple_text_contents: Set multiple text contents parallelly in a node
• set_font_name: Set the font name and style of a text node in Figma
• set_font_size: Set the font size of a text node in Figma
• set_font_weight: Set the font weight of a text node in Figma
• set_letter_spacing: Set the letter spacing of a text node in Figma
• set_line_height: Set the line height of a text node in Figma
• set_paragraph_spacing: Set the paragraph spacing of a text node in Figma
• set_text_case: Set the text case of a text node in Figma
• set_text_decoration: Set the text decoration of a text node in Figma
• get_styled_text_segments: Get text segments with specific styling in a text node
• load_font_async: Load a font asynchronously in Figma

• create_component_instance: Create an instance of a component in Figma

• Major code refactoring: Implemented modular tool structure for better maintainability
• Performance improvements:
  • Enhanced handling of complex operations with timeouts and chunking
  • Improved error handling and recovery for all tools
• Fixes for specific tools:
  • Fixed channel connection issues with improved state management
  • Resolved timeout problems in flatten_node, create_component_instance, and set_effect_style_id
  • Enhanced remote component access with better error handling
• Documentation: Comprehensive documentation of tool categories and capabilities
• Code quality: Improved TypeScript typing and standardized error handling

• Added new tools for creating advanced shapes:
  • create_ellipse: Creation of ellipses and circles
  • create_polygon: Creation of polygons with customizable sides
  • create_star: Creation of stars with customizable points and inner radius
  • create_vector: Creation of complex vector shapes
  • create_line: Creation of straight lines
• Improvements in documentation and usage examples
• Added advanced text and font manipulation capabilities
• New commands for controlling typography: font styles, spacing, text case, and more
• Added support for accessing team library components
• Improved error handling and timeout management
• Enhanced text scanning capabilities

• Added set_auto_layout command to configure auto layout properties for frames and groups
• Supports settings for layout direction, padding, item spacing, alignment and more

• Initial public release with Claude Desktop support

If you encounter problems, check the following common issues:

• Connection Error: Make sure the WebSocket server is running with bun socket
• Plugin Not Appearing: Verify that you've correctly linked the plugin folder in Figma Development settings
• Claude Can't Find the MCP: Make sure you've run bun run configure-claude and restarted Claude Desktop
• Claude Not Responding: Confirm you've selected "ClaudeTalkToFigma" in the MCPs menu
• Execution Errors: Check the Figma development console for detailed messages
• Font Loading Issues: Some fonts might not be available in Figma. Use load_font_async to verify font availability
• Remote Components Error: Team libraries might require proper permissions in Figma. Ensure you have access to the libraries you're trying to use

To run the integration tests:

bun run test

For more details about testing, see TESTING.md.

Contributions are welcome. Please follow these steps:

1. Fork the repository
2. Create a branch for your feature (git checkout -b feature/amazing-feature)
3. Commit your changes (git commit -m 'Add some amazing feature')
4. Push to the branch (git push origin feature/amazing-feature)
5. Open a Pull Request

This project is under the MIT License - see the LICENSE file for details.

• Xúlio Zé - Adaptation for Claude - GitHub
• Sonny Lazuardi - Original Cursor implementation - GitHub

• Anthropic team for Claude and the Model Context Protocol
• Figma community for their excellent plugin API
• Sonny Lazuardi for the original Cursor Talk to Figma MCP implementation
• Bun team for providing a fast JavaScript runtime
